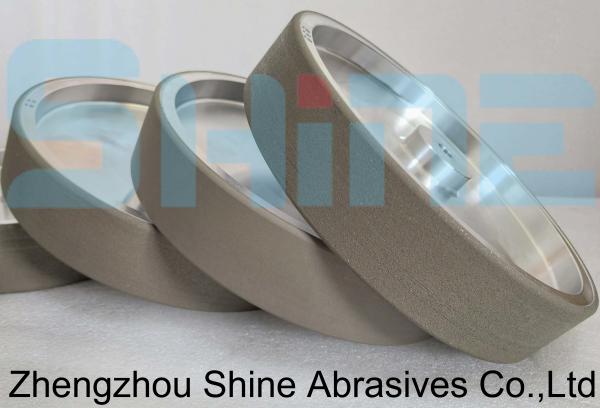

ODM 1A1Resin Bond Diamond Grinding Wheel For Sharpening Carbide Tool

Brand Name : Shine Abrasives

Model Number : 4V2 1A1 14A2

Certification : ISO

Place of Origin : China

MOQ : 2 pcs

Price : FOB

Payment Terms : L/C, T/T

Supply Ability : 1000 PCS in one week

Delivery Time : 5 work days

Packaging Details : one in paperbox

Wheel Concentration : Varies

Grain : Mono-crystalline, Polycrystalline

Usage : sharpening,grinding

Wheel Edge : Straight, Beveled, Radius

Arbor Hole : Varies

Maximum Speed : 6,000-12,000 RPM

Life Span : Long

Warranty : Customized

Style : 1V1

Speed : High

Cbn Rim Size : 6x15mm

Diamond Rim Size : 10x5mm

Viscosity : Standrad,good,as required

Advantages : High Working Efficiency

Wheel Bond : Resin

Contact Now

ODM 1A1Resin Bond Diamond Grinding Wheel for Sharpening Carbide Tool

Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.

Type:
1A1 Flat resin bond diamond grinding wheel
Concentration:
50%,75%,125%,150%
Mesh
46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification:
D75-H10-T5-X10 D150-H19-X5-T5
D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
Application:
hard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
The specifications are basically complete, and some specifications are not marked. Pleasecontact
customer service if necessary. Can also be customized
